10Gbps双纤双向CWDM光收发一体?
描述
FTRS-Cxx1X-xxx型光收发?橹饕τ糜诠獗嘲宕洹⒏呖煽啃愿呤萋实愣缘愎庀送ㄐ拧⑹掷状镎罅械戎种质止馔ㄐ帕煊,具有体积小、抗振动、抗电磁滋扰、耐湿热等特点。?橥庑问褂萌鹗艚峁,将发送和接收部分封装在一个小尺寸金属壳体内,接纳12Pin排针电接口,发射波长为1310nm,发射通道和接收通道事情速率可到10.3125Gbps,光接口为可插拔的标准LC连接器接口,事情温度为-40~85℃。
特性描述
● 支持 10.3125G/s双向连接
● 适应于高速信号完整性的表贴I/O引脚
● 金属封装,具有较低的EMI
● 军品级温度规模,接纳抗振动设计
● 内建数字诊断功效
● 3.3 V单电源供电
● 18个CWDM波长可选
应用
● 10GBASE-SR
● 高可靠性高数据率点对点光纤通信
● 数字雷达阵列
● 光背板传输

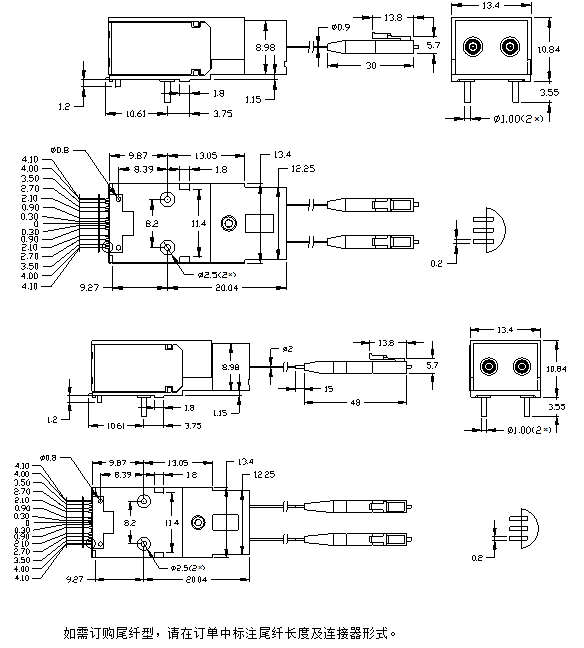

外形尺寸
非尾纤式订购信息
FTRS |
-Cxx |
1X |
-xx |
X |
双纤双向超短型CWDM光? |
27~61: 1270~1610nm |
1X: 10Gbps |
02 ≥2km 10 ≥10km 20 ≥20km
|
C 商业级 |
I 工业级 |
||||
M 军品级 |
备注:Cxx:27=1270,29=1290,31=1310,33=1330,35=1350,37=1370,39=1390,41=1410,43=1430,
45=1450,47=1470,49=1490,51=1510,53=1530,55=1550,57=1570,S=1590,61=1610
尾纤式订购信息
FTRS |
-Cxx |
1X |
-xx |
x |
-xxx |
-xx |
双纤双向超短型CWDM光? |
27~61: 1270~1610nm |
1X: 10Gbps |
02 ≥2km 10 ≥10km 20 ≥20km
|
C 商业级 |
01或01M:1米 |
LC: LC |
I 工业级 |
...... |
FC:FC |
||||
M 军品级 |
10或10M:10米 |
MT:MT ..... |
备注:Cxx:27=1270,29=1290,31=1310,33=1330,35=1350,37=1370,39=1390,41=1410,43=1430,
45=1450,47=1470,49=1490,51=1510,53=1530,55=1550,57=1570,S=1590,61=1610
注:本产品有全国产化型号可选
本产品为FTRS系列,仅展示部分参数,如有需要,请联系asiagame。
