标准光?

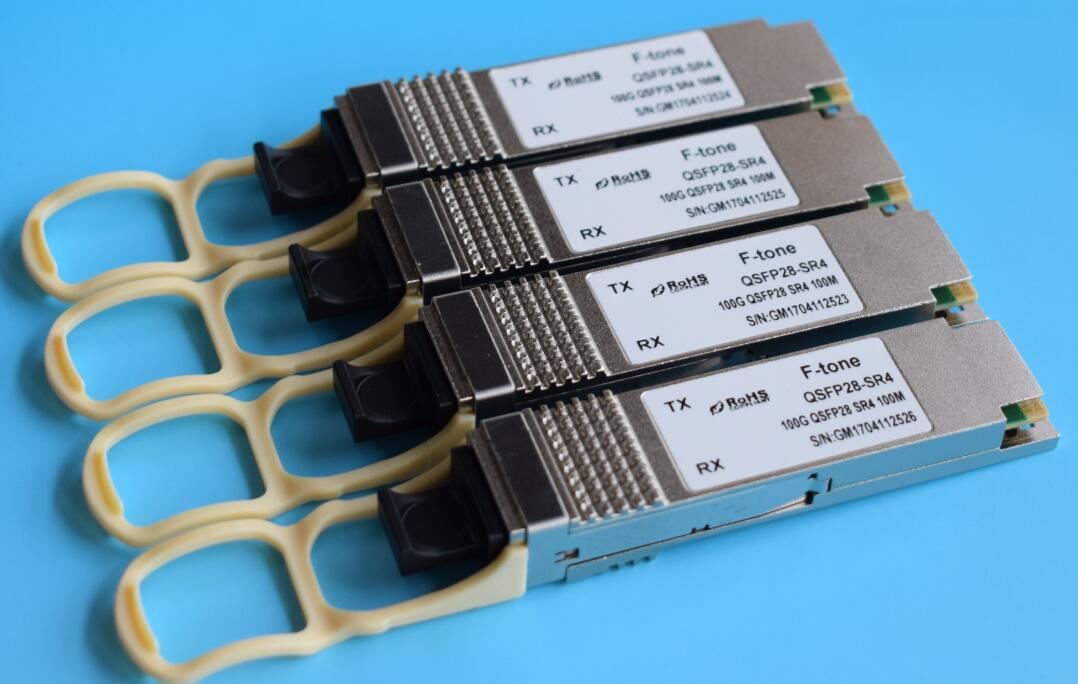

QSFP-DD光?

QSFP-DD光?

QSFP-DD光?,QSFP-DD光纤?,QSFP-DD 200G光?,QSFP-DD 200G光纤?,QSFP-DD 400G光?,QSFP-DD 400G光纤?;目前QSFP28光?橛兴母龅缤ǖ,每通道运行速率为10Gbps或25Gbps,支持40G和100G以太网应用。新建立的QSFP-DD小组计划将通道数增加到八个,通过NRZ调制使每通道运行速率上达25Gbps或通过PAM4调制每通道运行速率上达50Gbps,从而支持200Gbps或400Gbps光传输。该MSA小组体现,在400Gbps传输速率下,该QSFP-DD封装能让简单交换机插槽的汇总带宽抵达14.4zbps,能满足快速增长的数据中心流量增长。

P/NProduct DescriptionData Rate (Gbit/s)ReachTXRXPower ConsumptionTemperature (deg C)
FT-QSFPDD-AOC-xxx 400G QSFP-DD AOC 400G 30m VCSEL PIN <9W (for each end) 0-70/-40~85可选
FT-QSFPDD-SR8 400G QSFP-DD SR8 400G 100m VCSEL PIN <9W 0-70/-40~85可选
FT-QSFPDD-DR4 400G QSFP-DD DR4 400G 500m Uncooled EML PIN <10W 0-70/-40~85可选
FT-QSFPDD-FR4 400G QSFP-DD FR4 400G 2km Uncooled EML PIN <10W 0-70/-40~85可选
FT-QSFPDD-LR8 400G QSFP-DD LR8 400G 10km Cooled EML PIN <13W 0-70/-40~85可选
FT-QSFPDD-ER8 400G QSFP-DD ER8 400G 40KM coming soon coming soon coming soon 0-70/-40~85可选
FT-QSFPDD-ZR8 400G QSFP-DD ZR8 400G 80KM coming soon coming soon coming soon 0-70/-40~85可选

QSFP-DD光?

 400G QSFP-DD 70m/100m Optical Transceiver

400G QSFP-DD 70m/100m Optical Transceiver

400G QSFP-DD 70m/100m Optical Transceiver

Product Description
F-tone Networks’s QSFP-DD transceiver module is designed for use in 400 Gigabit Ethernet links over 70m OM3 or 100m OM4 fiber. The module has 8 independent electrical input/output channels operating at 53.125Gbps per channel. This transceiver consists of two transmitter/receiver units, with each operating on 850nm wavelength.

 400G QSFP-DD to 8x 50G SFP56 AOCOC

400G QSFP-DD to 8x 50G SFP56 AOCOC

400G QSFP-DD to 8x 50G SFP56 AOCOC

设计为2x200G以太网200G-SR4到8X50G以太网50G-SR互连多个850nm多模光纤。

100G-QSFP28-12

100G-QSFP28-12

100G-QSFP28-12

100G-QSFP28-12 is Multi-Vendor MSA Compatible 100GBASE-LR4 QSFP28 (Quad Small Form-Factor Pluggable 28) Transceiver, operating over pair of single-mode optical fiber with four independent optical communication lanes, separated from each other using LAN WDM technology.

100G-QSFP28-2

100G-QSFP28-2

100G-QSFP28-2

100G-QSFP28-102 is Multi-Vendor MSA Compatible 100GBASE-PSM4/IR4 QSFP28 (Quad Small Form-Factor Pluggable 28) Transceiver designed for operation over single-mode optical fiber.

100G-QSFP28-2.1

100G-QSFP28-2.1

100G-QSFP28-2.1

100G-QSFP28-2.1 is Multi-Vendor MSA Compatible 100G QSFP28 CWDM4 (Quad Small Form-Factor Pluggable 28) Transceiver, operating over pair of single-mode optical fiber. Module adopts CWDM MUX/DEMUX technology with central wavelength of the lanes at: 1271, 1291, 1311, 1331 nm.

100G-QSFP28-2.1

100G-QSFP28-2.1

100G-QSFP28-2.1

100G-QSFP28-2.1 is Multi-Vendor MSA Compatible 100G QSFP28 CWDM4 (Quad Small Form-Factor Pluggable 28) Transceiver, operating over pair of single-mode optical fiber. Module adopts CWDM MUX/DEMUX technology with central wavelength of the lanes at: 1271, 1291, 1311, 1331 nm.

100G-QSFP28-20

100G-QSFP28-20

100G-QSFP28-20

100G-QSFP28-20 is Multi-Vendor MSA Compatible 100GBASE-LR4 QSFP28 (Quad Small Form-Factor Pluggable 28) Transceiver, operating over pair of single-mode optical fiber with four independent optical communication lanes, separated from each other using LAN WDM technology.

100G-QSFP28-40

100G-QSFP28-40

100G-QSFP28-40

100G-QSFP28-40 is Multi-Vendor MSA Compatible 100GBASE-ER4 Lite QSFP28 (Quad Small Form-Factor Pluggable 28) Transceiver, operating over pair of single-mode optical fiber with four independent optical communication lanes, separated from each other using LAN WDM technology.

100G-QSFP28-40

100G-QSFP28-40

100G-QSFP28-40

100G-QSFP28-40 is Multi-Vendor MSA Compatible 100GBASE-ER4 Lite QSFP28 (Quad Small Form-Factor Pluggable 28) Transceiver, operating over pair of single-mode optical fiber with four independent optical communication lanes, separated from each other using LAN WDM technology.

100G-QSFP28-80

100G-QSFP28-80

100G-QSFP28-80

100G-QSFP28-80 is Multi-Vendor MSA Compatible 100GBASE-ZR4 QSFP28 (Quad Small Form-Factor Pluggable 28) Transceiver, operating over pair of single-mode optical fiber with four independent optical communication lanes, separated from each other using LAN WDM technology.

100G-QSFP28-SL2

100G-QSFP28-SL2

100G-QSFP28-SL2

100G-QSFP28-SL2 is Multi-Vendor MSA Compatible 100G-FR Single Lambda PAM4 QSFP28 (Quad Small Form-Factor Pluggable 28) Transceiver, operating over pair of single-mode optical fiber.

100G-QSFP28-SL500

100G-QSFP28-SL500

100G-QSFP28-SL500

100G-QSFP28-SL500 is Multi-Vendor MSA Compatible 100G-DR Single Lambda PAM4 QSFP28 (Quad Small Form-Factor Pluggable 28) Transceiver, operating over pair of single-mode optical fiber.

100G/400G QSFP-DD DCO

100G/400G QSFP-DD DCO

100G/400G QSFP-DD DCO

F-tone Networks QSFP-DD product family is designed based on dual polarization quadrature phase shift keying (DP-QPSK) or dual polarization quadrature amplitude modulation (DP-16QAM) or probabilistic constellation shaping quadrature amplitude modulation (PCS-16QAM), supporting extended C-band, polarization diversity coherent detection and advanced electronic link equalization.

200G QSFP-DD AOC

200G QSFP-DD AOC

200G QSFP-DD AOC

设计用于多个850nm多模光纤上的2x 100G以太网100GABSE-SR4互连。

QSFP28-OTU4-LR4光?

200G QSFP-DD PSM8 10km

200G QSFP-DD PSM8 10km

asiagame(F-tone Networks)200G QSFP-DD PSM8光?樽ㄎ喔龅ツ9庀松系2x100G以太网PSM4链路而设计,支持使用1310nm波长传输距离达10km。

QSFP28-OTU4-LR4光?

200G QSFP-DD PSM8 2km

200G QSFP-DD PSM8 2km

asiagame200G QSFP-DD PSM8(双PSM4)?樵诿扛銎蛏霞闪8个数据通道。每条车道的运行速度为25.78Gbps,最高可达G.652 SMF的2km。它设计用于使用标称波长为1310nm的单模光纤系统。电气接口使用76触点边沿型连接器。光接口使用24光纤MTP / MPO连接器。该?榻幽蒅igalight成熟的电路和光学技术,可提供可靠的长寿命,高性能和一致的效劳。

QSFP28-OTU4-LR4光?

200G QSFP-DD SR8 100m

200G QSFP-DD SR8 100m

asiagame(F-tone Networks)200G QSFP-DD SR8 100m专为200G以太网2x 100GBASE-SR4链路而设计,可连接多个850nm多模光纤。

200G QSFP-DD SR8 TO 2x100GBASE QSFP28 SR4 Breakout Active Optical Cable

200G QSFP-DD SR8 TO 2x100GBASE QSFP28 SR4 Breakout Active Optical Cable

200G QSFP-DD SR8 TO 2x100GBASE QSFP28 SR4 Breakout Active Optical Cable

200G QSFP-DD to 2x 100G QSFP28 SR4 AOC

200G QSFP-DD to 2x 100G QSFP28 SR4 AOC

200G QSFP-DD to 2x 100G QSFP28 SR4 AOC

200G QSFPDD至2x100G QSFP28分支有源光缆专为短距离多通道数据通信和互连应用而设计。 它在每个偏向上集成了8个数据通道,带宽为8x25.78125Gbps。 每条通道OM3 MMF上最大链路长度为70米,OM4 MMF上最长链路长度为100米。

200G QSFP-DD to 2x100G QSFP28 Breakout DAC, Passive, 0.5~2meters

200G QSFP-DD to 2x100G QSFP28 Breakout DAC, Passive, 0.5~2meters

200G QSFP-DD to 2x100G QSFP28 Breakout DAC, Passive, 0.5~2meters

200G QSFP-DD to 2x100G QSFP28 Passive Direct Attach Copper Breakout Cable application is "break-out" DAC assembly which is a hybrid transition from a QSFP-DD on one terminal to two individual QSFP28 on the other.

200G QSFP-DD to 4x 50G QSFP28 AOC

200G QSFP-DD to 4x 50G QSFP28 AOC

200G QSFP-DD to 4x 50G QSFP28 AOC

设计用于2x100G以太网100GbASE-SR4到4x50G在多个850nm多模光纤上的互连。

200G QSFP-DD to 8x25G SFP28 Breakout DAC, Passive, 1~2meters

200G QSFP-DD to 8x25G SFP28 Breakout DAC, Passive, 1~2meters

200G QSFP-DD to 8x25G SFP28 Breakout DAC, Passive, 1~2meters

200G QSFP-DD to 8x25G SFP28 Passive Direct Attach Copper Breakout Cable application is "break-out" DAC assembly which is a hybrid transition from a QSFP-DD on one terminal to eight individual SFP28 on the other.

200G QSFP-DD to QSFP-DD DAC, Passive, 0.5~3 meters

200G QSFP-DD to QSFP-DD DAC, Passive, 0.5~3 meters

200G QSFP-DD to QSFP-DD DAC, Passive, 0.5~3 meters

200G QSFP-DD DAC cables are suitable for very short links and offer a cost-effective way to establish a 200-Gigabit link between QSFP-DD ports of switches/routers within racks and across adjacent racks.

200G QSFP-DD光?

200G QSFP-DD光?

200G QSFP-DD光?

asiagame200G PAM4 LR4和ER4?樯杓朴τ糜5G中传和回传。它们接纳QSFP-DD尺寸和LC连接器,并切合QSFP-DD MSA标准。

200Gb/s QSFP DD PSM8 10km Optical Transceiver

200Gb/s QSFP DD PSM8 10km Optical Transceiver

200Gb/s QSFP DD PSM8 10km Optical Transceiver

200Gb/s QSFP DD PSM8 2km Optical Transceiver

200Gb/s QSFP DD PSM8 2km Optical Transceiver

200Gb/s QSFP DD PSM8 2km Optical Transceiver

2x100G QSFP28-DD

2x100G QSFP28-DD

2x100G QSFP28-DD

F-tone Networks’s QSFP-DD 2x100G are having 8x25G optical lanes operating at NRZ encoding. They are compliant with the QSFP-DD MSA. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP-DD MSA.

2x100G-QDD-10

2x100G-QDD-10

2x100G-QDD-10

2x100G-QDD-10 is Multi-Vendor MSA Compatible 2x100GBASE-LR4 QSFP28-DD (Quad Small Form-Factor Pluggable Double Density) Transceiver designed for operation over single-mode optical fiber. 2x100G LR4 has a QSFP-DD form factor which supports eight electrical interface lanes which can operate in 25G NRZ encoding mode resulting in 200G (8x25G) data rate.

2x100G-QDD-100

2x100G-QDD-100

2x100G-QDD-100

2x100G-QDD-100 is Multi-Vendor MSA Compatible 2x100GBASE-SR4 QSFP28-DD (Quad Small Form-Factor Pluggable Double Density) Transceiver designed for operation over multi-mode optical fiber. 2x100G SR4 has a QSFP-DD form factor which supports eight electrical interface lanes which can operate in 25G NRZ encoding mode resulting in 200G (8x25G) data rate.

2x100G-QDD-2.1

2x100G-QDD-2.1

2x100G-QDD-2.1

2x100G-QDD-2.1 is Multi-Vendor MSA Compatible 2x100G CWDM4 QSFP28-DD (Quad Small Form-Factor Pluggable Double Density) Transceiver designed for operation over single-mode optical fiber. 2x100G CWDM4 has a QSFP-DD form factor which supports eight electrical interface lanes which can operate in 25G NRZ encoding mode resulting in 200G (8x25G) data rate.

2x100GBASE-SR4 QSFP DD Optical Transceiver

2x100GBASE-SR4 QSFP DD Optical Transceiver

2x100GBASE-SR4 QSFP DD Optical Transceiver

2x100GBASE-SR4 QSFP-DD Active Optical Cable

2x100GBASE-SR4 QSFP-DD Active Optical Cable

2x100GBASE-SR4 QSFP-DD Active Optical Cable

400 G QSFP-DD to (4) 100G QSFP56 Passive Copper DAC Cable 0.5~3 meter

400 G QSFP-DD to (4) 100G QSFP56 Passive Copper DAC Cable 0.5~3 meter

400 G QSFP-DD to (4) 100G QSFP56 Passive Copper DAC Cable 0.5~3 meter

Features:
  • Compliant with QSFP DD MSA Specification Rev 3.0
  • SFF‐8679 electrical interface compliant
  • SFF‐8636 management interface support

400G 100m QSFP-DD SR8 Transceiver

400G 100m QSFP-DD SR8 Transceiver

400G 100m QSFP-DD SR8 Transceiver

Descriptions
FTQD-4H-SR8 QSFP-DD SR8 transceivers are designed for use in 400Gb/s links over multimode fiber. They integrates eight channel VCSEL array and eight channel PIN photodiode array, the module can operate at 425Gb/s up to 70m using OM3 or 100m using OM4 and OM5 MMF.

400G 10km QSFP-DD Optical Transceiver

400G 10km QSFP-DD Optical Transceiver

400G 10km QSFP-DD Optical Transceiver

Product Description
F-tone Networks’s QSFP-DD 4*100Gbps transceiver module is designed for optical communication applications in 400 Gigabit Ethernet links over 10km single mode fiber. This product converts 8 channels of 50Gbps (PAM4) electrical input data to 4 channels of 100Gbps (PAM4) CWDM optical signals.

400G 120km QSFP-DD Optical Transceiver

400G 120km QSFP-DD Optical Transceiver

400G 120km QSFP-DD Optical Transceiver

Product Description
F-tone Networks's QSFP-DD 8x100Gbps transceiver module can be used for 800 Gigabit Ethernet connections over 500m of single-mode fiber. The module includes eight parallel channels with a central wavelength of 1310nm, and the operating rate of each channel is 106.25Gbps.

400G 1~30m QSFP-DD Active Optical Cable

400G 1~30m QSFP-DD Active Optical Cable

400G 1~30m QSFP-DD Active Optical Cable

Product Description
F-tone Networks’s QSFP-DD AOC is designed for use in 400 Gigabit Ethernet links over 30m MMF. Each end of the AOC module has 8 independent electrical input/output channels operating at 53.125Gbps per channel. It consists of two transmitter/receiver units, with each operating on 850nm wavelength.

400G 2km QSFP-DD FR4 Optical Transceiver

400G 2km QSFP-DD FR4 Optical Transceiver

400G 2km QSFP-DD FR4 Optical Transceiver

Descriptions
FTQD-4H-FR4 transceiver is designed for use in 400Gb/s network applications, the maximum transmission distance is 2km. FTQD-4H-FR4 is a fully integrated optical transceiver modulated using 4-level pulse amplitude modulation (PAM4) format that transmits and receives optical signals with aggregated data rate of 425Gbps over 4 lanes on CWDM wavelength grids each running at 106.25Gbps.

400G 2km QSFP-DD Optical Transceiver

400G 2km QSFP-DD Optical Transceiver

400G 2km QSFP-DD Optical Transceiver

Product Description
F-tone Networks’s QSFP-DD 4*100Gbps transceiver module is designed for optical communication applications in 400 Gigabit Ethernet links over 2km single mode fiber. This product converts 8 channels of 50Gbps (PAM4) electrical input data to 4 channels of 100Gbps (PAM4) CWDM optical signals.

400G 480km QSFP-DD Optical Transceiver

400G 480km QSFP-DD Optical Transceiver

400G 480km QSFP-DD Optical Transceiver

Product Description
F-tone Networks’s QSFP-DD 400Gbps transceiver module is designed for optical communication applications in 400 Gigabit Ethernet links up to 480km single mode fiber. This product converts 8 channels of 50 Gbps (PAM4) electrical input data to single channel of 400Gbps (DP-16QAM) coherent optical signals.

[12 3 4  >>
