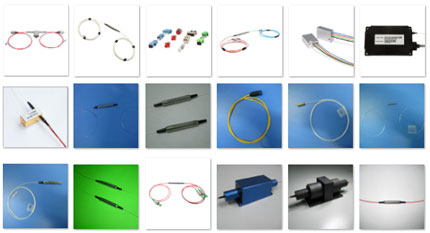

asiagame研爆发产的保偏产品种类繁多,保偏隔离器,保偏环形器,保偏合束器,保偏耦合器,保偏旋转器,保偏法拉第镜,保偏波分复用器等等。波长规模从980nm到1550nm,凭据客户要求还可以提供C-Band,L-Band等宽带器件。广泛应用于保偏光纤放大器,保偏光纤激光器,保偏高速通讯系统及实验用测试仪器及设备。具有宽带宽,高回损,高消光比,情况稳定性强等特点。
保偏光器件(PM)的事情原理:
1)光在普通单模光纤的传输时,任何非对称因素诸如纤芯的不圆度,外在应力的加载都将在光纤中引入双折射效应导而致光的畸变,此时相互笔直的两个偏振模态的传输常数是相同的。
2)在实际光传输中,由于光纤所受到的外界应力是随情况和温度的变革而不绝变革的,因此,普通光纤中的光的偏振模态是不稳定的。但如果在光纤内部引入高双折射效应来对抗外在的应力变革的滋扰,就能维持光纤中传输光的偏振模态。保偏光纤正是基于这样的原理来坚持偏振光稳定的传输状态。
3)光源输出偏振光不可能是理想的,而是有一个初始的消光比0ER,我们可以将那些不需要的光看成是配景光信号,这些配景光信号在系统的每一个连接处累积起来。如果我们能包管这些不需要的偏振态的光信号远小于实际的光信号,我们就能盘算通过每一个连接后的最终的输出消光比。
3)保偏器件的目的就是在接续或者耦合两根保偏光纤中的偏振光时尽量坚持偏振光的原有的偏振状态或者对偏振态进行某种变换。
保偏光器件(PM)的作用:
广泛应用以及偏振复用看法的提出,保偏器件正面临着巨大的市场潜力。PM器件有许多,好比最常见的是PM连接器,PM准直器,PM合(分)波器,退(起)偏器、偏振相关环行器、偏振相关隔离器等。
Polarization Maintaining Components | ||||||
Catagory | Sub Category | Wavelength | Product Description | |||
Collimator | 1064nm | PM Fiber Collimator 1064nm | ||||
1310nm-1550nm | PM Fiber Collimator 1310nm~1550nm | |||||
Fiber Mirror | 1064nm | PM Optic Fiber Mirror 1064nm | ||||
1310nm-1550nm | PM Optic Fiber Mirror 1310nm~1550nm | |||||
Polarizer | 1064nm | In-line Polarizer 1064nm | ||||
1310nm-1550nm | In-line Polarizer 1310nm~1550nm | |||||
Faraday Rotator |
1310nm-1550nm | In-line Faraday Rotator 1310nm~1550nm | ||||
Faraday Mirror | 1064nm | PM Faraday Mirror 1064nm | ||||
1310nm-1550nm | PM Faraday Mirror 1310nm~1550nm | |||||
Fiber Patchcord | 980nm~1550nm | PM Fiber Patchcord 980nm~1550nm | ||||
Filter Coupler | Component | 1064nm | PM Filter Coupler 1064nm 1*2port | |||
1064nm | PM Filter Coupler 1064nm 2*2port | |||||
1310nm-1550nm | PM Filter Coupler 1310nm~1550 1*2 2*2 | |||||
Module | 1064nm | PM Filter Coupler Module 1064nm 1*4 1*8 | ||||
1310nm-1550nm | PM Filter Coupler Module 1*4 1*8 | |||||
PBC/S | 1X2 | 1064nm | Polarization Beam Combiner/Splitter 1064nm 1*2 |
|||
1310nm-1550nm | Polarization Beam Combiner/Splitter 1310nm~1550nm 1*2 |
|||||
2X2 | 1064nm | PBCS 1064nm 2x2 | ||||
1310nm-1550nm | PBCS 1310nm~1550nm 2x2 | |||||
Isolator | 1064nm | PM Isolator 1064nm | ||||
1310nm-1550nm | PM Isolator 1310nm~1550nm | |||||
Twin Isolator | 1310nm-1550nm | Twin PM Isolator | ||||
PM Optical Circulator |
3 ports | 1064nm | PM Optical Circulator 1064nm 1*2 | |||
1310nm-1550nm | PM Optical Circulator 1310nm~1550nm 1*2 | |||||
4 ports | 1064nm | PM Optical Circulator 1064nm 2*2 | ||||
1310nm-1550nm | PM Optical Circulator 1310nm~1550nm 2*2 | |||||
DWDM | 100GHz 200GHz | PM Dense Wavelength Division Multiplexer 100GHz 200GHz |
||||
FWDM | 1550nm/980nm | PM Filter Wavelength Division Multiplexers 1550nm Pass / 980nm Reflect |
||||
1064nm/980nm | PM Filter Wavelength Division Multiplexers 980nm Pass / 1064nm Reflect |
|||||
1310nm/1550nm 1480nm/1550nm 1510nm/1550nm |
PM Filter Wavelength Division Multiplexer | |||||
Hybrid Component |
PBC/S+Isolator | 1064nm | Isolator Polarization Beam Combiner/Splitter | |||
1310nm-1550nm | Isolator Polarization Beam Combiner/Splitter 1310nm~1550nm |
|||||
Tap+Isolator | 1310nm-1590nm | PM TAP Isolator 1310nm~1590nm | ||||
WDM+Isolator | 1530nm-1565nm | PM Isolator WDM Hybrid 1530nm~1565nm | ||||
Tap+Isolator+ WDM |
1530nm-1565nm | PM TAP Isolator WDM 1530nm~1565nm | ||||
Mini Component |
Tap+Isolator | 1550nm | Mini PM Tap Isolator | |||
Filter Coupler | 1310nm/1550nm | Mini PM Filter Coupler | ||||
Faraday Rotator | 1310nm/1550nm | Mini In-line Faraday Rotator | ||||
Faraday Mirror | 1310nm-1550nm | Mini PM Faraday Mirror | ||||
Polarizer | 1310nm/1550nm | Mini In-line Polarizer | ||||
WDM+Isolator | 1550nm/980nm 1550nm/1480nm |
Mini PM Isolator WDM Hybrid |
F-tone Networks All kinds of PM components including PM isolator,PM circulator,PM combiner,PM coupler,PM faraday rotator,PM fiber mirrow,PM WDM,PM patchcord and so on. Wavelength ranging from 980nm to 1550nm, C band and L band and on request. Wide bandwidth, high return loss, high extinction ratio, high isolation with low insertion loss over a wide wavelength range and excellent environmental stability and reliability. Widely used in Polarization Maintaining Fiber Amplifiers,PM Fiber Lasers,PM high speed communication systems and instrumentation applications.
