Description
特性
典范传输速率10G(单通道)
LCC48表贴封装,高密度,小尺寸
十二路信号并行传输,光接收?
接纳PIN阵列,具有功耗小的特点
事情温度-40℃~+85℃
3.3V单电源供电
应用
甚短距离的高速数据通信连接(板级互连、机架间互连、系统级互连),效劳器与存储器阵列的互连。
主要性能指标
典范传输速率
|
10Gbps
|
接口类型
|
MT/MPO
|
中心波长
|
850nm
|
接收灵敏度
|
≤-10dBm(-40℃~+85℃)
|
电源电压
|
3.3V
|
事情温度
|
-40℃~+85℃
|
封装尺寸
|
16.4×16.4×3.6(mm)
|
订购信息
FTLA-12R1X-02
|
X
|
-XX
|
-XX
|
F-tone LCC48 12路并行接收光?,6.25G每通道,A类管脚图
|
空 商业级
|
100mm
尾纤长度(可定制)
|
MT MT尾纤输出
MP MPO尾纤输出
|
I 工业级
|
M 军品级
|

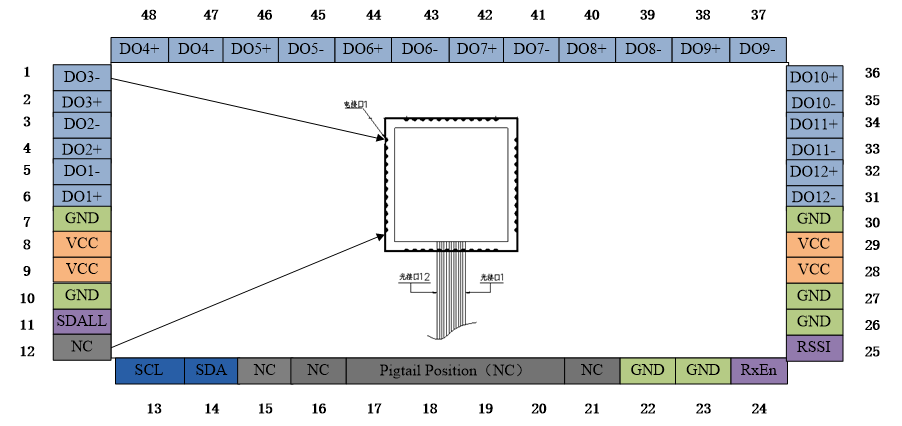

引脚界说图
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
